SAT00384.SAT
42,45
40,0
37,5
35,0
32,5
Nessun dettaglio.
30,0
27,5
25,0
22,5
18,26

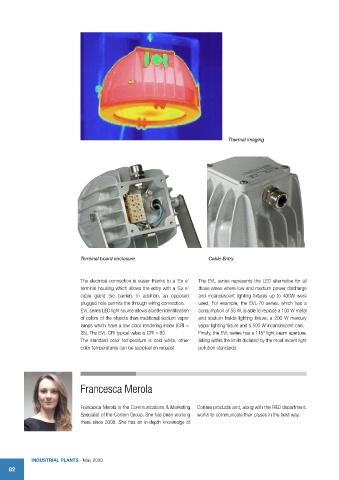

Thermal imaging
Sistema GTS S160
Dimensione Immagine 153x116
Data /termocamera 02.09.2003
Ora/termocamera 03:04:31
Campo Temp. /termocamera 16,3 - 45,7°C
Range di calibrazione -273,0 - 300,0°C
Temp. Ambiente 25,0°C
Emissività 1,00
Distanza 5,00
Umidità Rel. 0 %
Terminal board enclosure Cable Entry
The electrical connection is easier thanks to a ‘Ex e’ The EVL series represents the LED alternative for all
terminal housing which allows the entry with a ‘Ex e’ those areas where low and medium power discharge
cable gland (no barrier). In addition, an opposed and incandescent lighting fixtures up to 400W were
plugged hole permits the through wiring connection. used. For example, the EVL-70 series, which has a
EVL series LED light source allows a better identification consumption of 55 W, is able to replace a 100 W metal
of colors of the objects than traditional sodium vapor and sodium halide lighting fixture, a 200 W mercury
lamps which have a low color rendering index (CRI = vapor lighting fixture and a 500 W incandescent one.
25). The EVL CRI typical value is CRI = 80. Finally, the EVL series has a 115° light beam aperture,
The standard color temperature is cold white, other falling within the limits dictated by the most recent light
color temperatures can be supplied on request. pollution standards.
Francesca Merola
Francesca Merola is the Communications & Marketing Cortem products and, along with the R&D department,
Specialist of the Cortem Group. She has been working works to communicate their pluses in the best way.
there since 2008. She has an in-depth knowledge of
